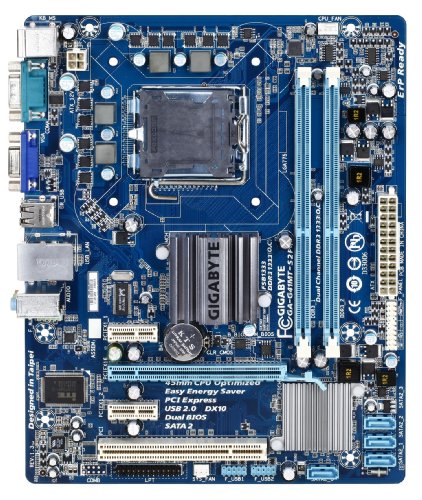

GIGABYTE GA-G41MT-S2P LGA 775 Intel G41 Micro ATX DDR3 1333 Desktop Motherboard

GIGABYTE GA-G41MT-S2P LGA 775 Intel G41 Micro ATX DDR3 1333 Desktop Motherboard Review

GIGABYTE GA-G41MT-S2P LGA 775 Intel G41 Micro ATX DDR3 1333 Desktop Motherboard Feature

• CPU: Intel Core 2 Extreme/Quad/Duo/Pentium/Celeron processor in the LGA775 package . Chipset: North Bridge: Intel G41 Express Chipset. South Bridge: Intel ICH7
• Memory: 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory. Dual channel memory architecture. Support for DDR3 1333(O.C.)1066/800 MHz memory modules
• Audio: VIA VT2021 codec, High Definition Audio, 2/4/5.1/7.1-channel. LAN: 1 x Atheros AR8151 chip (10/100/1000 Mbit)
• Expansion Slots: 1 x PCI Express x16 slot, running at x16. 2 x PCI Express x1 slots. 1 x PCI slot
• Storage Interface: 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
• Back Panel Connectors:1 x PS/2 keyboard port/1 x PS/2 mouse port/1 x serial port/1 x D-Sub port/4 x USB 2.0/1.1 ports/1 x RJ-45 port/3 x audio jacks (Line In/Line Out/Microphone)
• GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers.
• GIGABYTE has further improved on the CPU VRM area by increasing the power phases from 3 to a 4 phase design.
• GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices.
• GIGABYTE was the first motherboard manufacturer to realize the importance of using only the highest quality components.
• Gigabyte Motherboard GA-G41MT-S2P Core 2 Duo 775 G41 PCI Express SATA 3Gb/s USB 2.0 microATX Retail.
• Internal I/O Connectors:1 x 24-pin ATX main power connector/1 x 4-pin ATX 12V power connector/4 x SATA 3Gb/s connectors/1 x CPU fan header/1 x system fan header/1 x front panel header/1 x front panel audio header/2 x USB 2.0/1.1 headers/1 x parallel port/1 x clearing CMOS jumper
• USB: Up to 8 USB 2.0/1.1 ports

The GIGABYTE GA-G41MT-S2P Intel G41 Motherboard with GIGABYTE Ultra Durable 2 Technology features Ferrite Core Chokes with higher energy efficiency compared to more common iron core chokes and Lower RDS(on) MOSFETs which feature lower resistance, i.e. reduced power consumption and heat.
